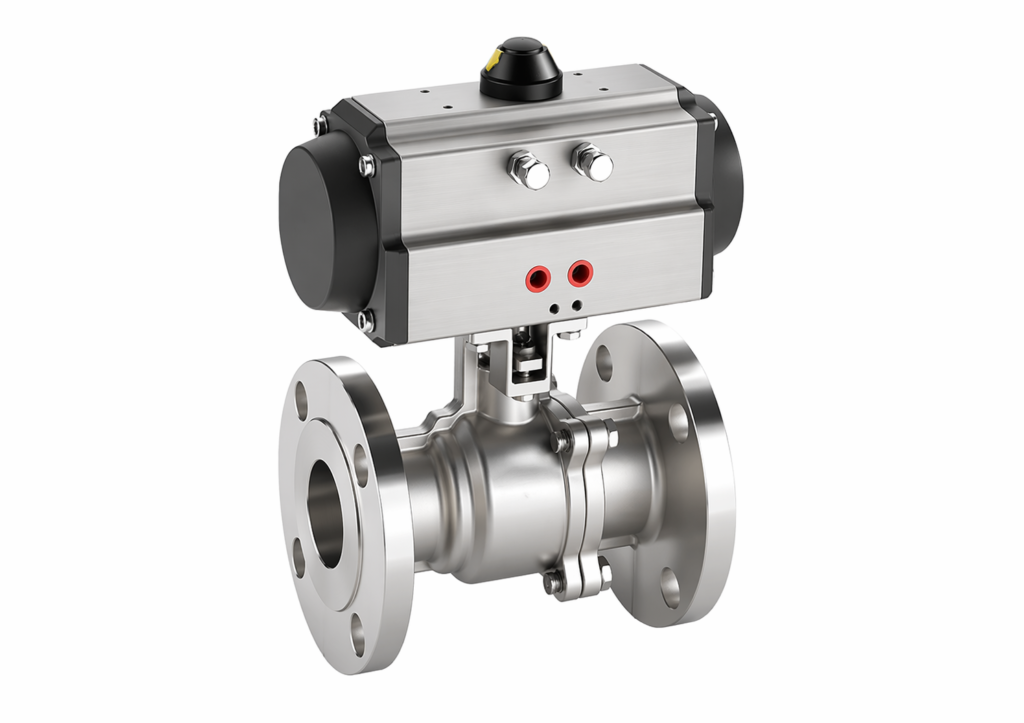

2 PIECE Bracket Mounting Ball Valve

Designed for actuator integration, our 2-Piece Bracket Mounting Ball Valve comes with an ISO 5211-compliant mounting pad for direct coupling with pneumatic or electric actuators. The two-piece body construction allows quick in-line servicing, while the stainless steel ball and stem ensure smooth, reliable operation across thousands of cycles. This valve works well in automated process lines where remote or programmed valve operation is required, such as batching systems and continuous flow control setups.

SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

Designed for actuator integration, our 2-Piece Bracket Mounting Ball Valve comes with an ISO 5211-compliant mounting pad for direct coupling with pneumatic or electric actuators. The two-piece body construction allows quick in-line servicing, while the stainless steel ball and stem ensure smooth, reliable operation across thousands of cycles. This valve works well in automated process lines where remote or programmed valve operation is required, such as batching systems and continuous flow control setups.

Reviews

There are no reviews yet.

Be the first to review “2 PIECE Bracket Mounting Ball Valve”

Your email address will not be published. Required fields are marked *

Design Features

Parameter Details
MOC WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc.
Valve Design Two Piece Construction
Size 15mm to 100mm (1/2" TO 4")
End Connection Flanged End (ASME B16.5)
Pressure Class 150#
Operation Manual, Pneumatic Actuator, Electric Actuator & Gear
Design & Manufacturing Std. ISO 17292 / BS 5351 / API 6D / ISO 5211
Testing & Inspection API 598 / BS 6755
Fire Safe Yes
Valve Bore Full Bore
Face to Face ASME B16.10
Temp. Range -20 TO 180°C

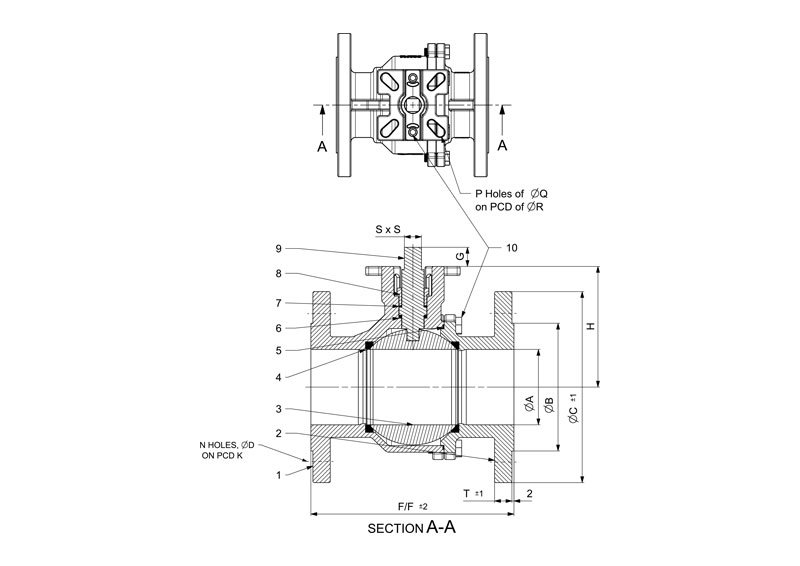

Technical Specifications

No. Description Material
1 Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
2 Tail Piece ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
3 Ball (Hollow/Solid) ASTM A351 Gr. CF8/CF8M/CF3/CF3M
4 Seat Ring PTFE/GFT/CFT/TFM
5 Body Seal PTFE/GFT/CFT/TFM/GRAFOIL
6 Stem Seal PTFE/GFT/CFT/TFM/GRAFOIL
7 Gland Seal PTFE/GFT/CFT/TFM/GRAFOIL
8 Gland SS304/SS316/SS304L/SS316L/SS410
9 Stem SS304/SS316/SS304L/SS316L/SS410
10 Bolt SS 202/SS 304/SS 316/B7/MS

Benefits & Application

  • The valve body is designed with an ISO 5211 Pad, which allows for direct mounting of actuator or gear
  • High performance with actuator or gear
  • Full port – higher flow rates & no pressure drops
  • Blowout-proof stem design
  • Anti-static device (on request)
  • Fire safe design

Testing Parameters

Test Type Unit (Kg/cm²) Unit (PSIG)
Hydro. Shell 32 430
Hydro Seat 22 315
Air/Pneumatic 7 80
