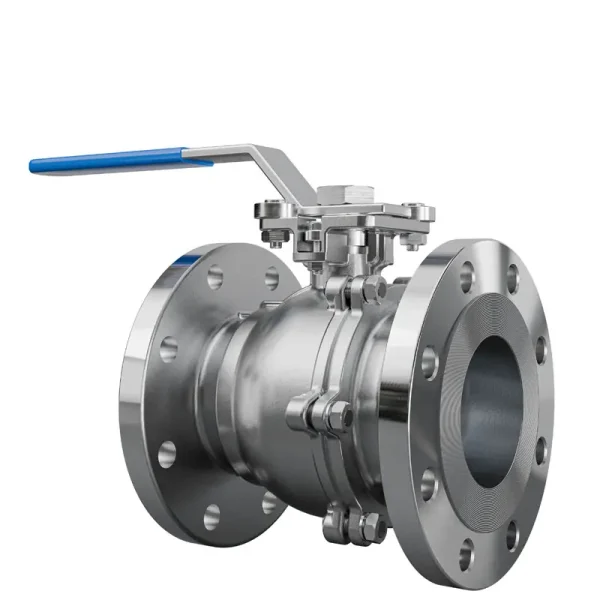

The 2 Piece Flanged End Ball Valve is a durable and high-performance valve designed for efficient flow control in industrial pipelines. Made from high-quality materials, it ensures leak-proof operation, corrosion resistance, and long service life. Its flanged end connections allow easy installation and secure fitting, making it ideal for applications in water, oil, gas, and chemical industries.
The 2 Piece Flanged End Ball Valve is a durable and high-performance valve designed for efficient flow control in industrial pipelines. Made from high-quality materials, it ensures leak-proof operation, corrosion resistance, and long service life. Its flanged end connections allow easy installation and secure fitting, making it ideal for applications in water, oil, gas, and chemical industries.
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Two Piece Construction |
| Size | 15mm to 250mm (1/2" TO 10") |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# |
| Operation | Manual |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | On Request |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Lock Nut | SS202/SS304/SS316/MS |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Handle | SS202/SS304/SS316/CS |
| Sleeve | PVC |
| Bolt | SS202/SS304/SS316/B7/MS |
| Test Type | Unit (Kg/cm²) | PSIG |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro. Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Two Piece Construction |
| Size | 15mm to 250mm (1/2" TO 10") |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# |
| Operation | Manual |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | On Request |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Lock Nut | SS202/SS304/SS316/MS |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Handle | SS202/SS304/SS316/CS |
| Sleeve | PVC |
| Bolt | SS202/SS304/SS316/B7/MS |
| Test Type | Unit (Kg/cm²) | PSIG |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro. Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
