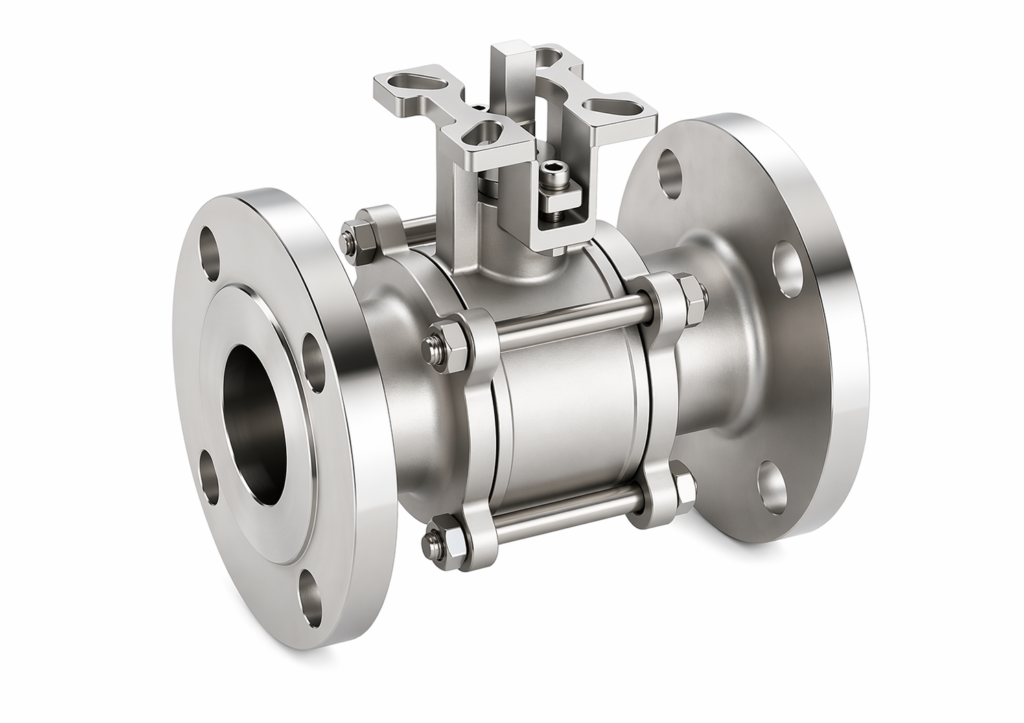

This 3-Piece Bracket Mounting Ball Valve combines the maintenance-friendly three-piece body with an actuator-ready mounting bracket. Plant operators can service the valve in-line while retaining automation capability, which makes it a preferred choice for continuous process lines. The valve’s full-bore design ensures minimal flow resistance, and its stainless steel construction resists corrosion in aggressive chemical environments.
This 3-Piece Bracket Mounting Ball Valve combines the maintenance-friendly three-piece body with an actuator-ready mounting bracket. Plant operators can service the valve in-line while retaining automation capability, which makes it a preferred choice for continuous process lines. The valve’s full-bore design ensures minimal flow resistance, and its stainless steel construction resists corrosion in aggressive chemical environments.

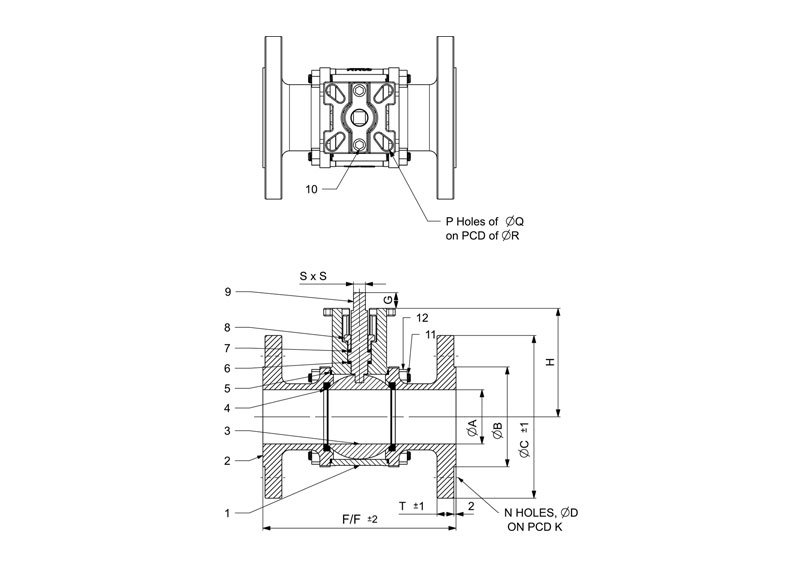

| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Three Piece Construction |
| Size | 15mm to 100mm (1/2" TO 4") |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# |
| Operation | Manual, Pneumatic Actuator, Electric Actuator & Gear |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D / ISO 5211 |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | Yes |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Stud | SS202/SS304/SS316/B7/MS |
| Nut | SS202/SS304/SS316/2H/MS |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Three Piece Construction |
| Size | 15mm to 100mm (1/2" TO 4") |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# |
| Operation | Manual, Pneumatic Actuator, Electric Actuator & Gear |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D / ISO 5211 |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | Yes |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Stud | SS202/SS304/SS316/B7/MS |
| Nut | SS202/SS304/SS316/2H/MS |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
