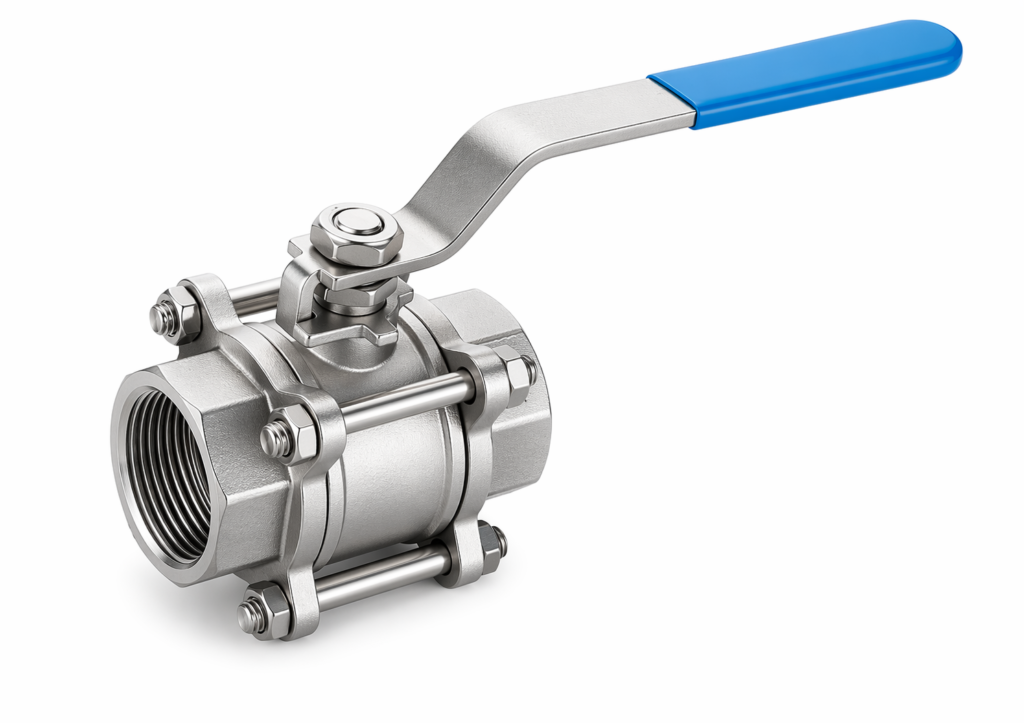

3 Piece Screwed End Ball Valve

The 3 Piece Screwed End Ball Valve is a reliable and easy-to-maintain valve designed for efficient flow control in piping systems. Its three-piece construction allows quick dismantling for cleaning and maintenance without removing the valve from the line. Featuring screwed (threaded) ends for simple installation, it ensures tight sealing, corrosion resistance, and long service life—ideal for applications in water, oil, gas, and chemical industries.

Download Catalouge
SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

The 3 Piece Screwed End Ball Valve is a reliable and easy-to-maintain valve designed for efficient flow control in piping systems. Its three-piece construction allows quick dismantling for cleaning and maintenance without removing the valve from the line. Featuring screwed (threaded) ends for simple installation, it ensures tight sealing, corrosion resistance, and long service life—ideal for applications in water, oil, gas, and chemical industries.

Reviews

There are no reviews yet.

Be the first to review “3 Piece Screwed End Ball Valve”

Your email address will not be published. Required fields are marked *

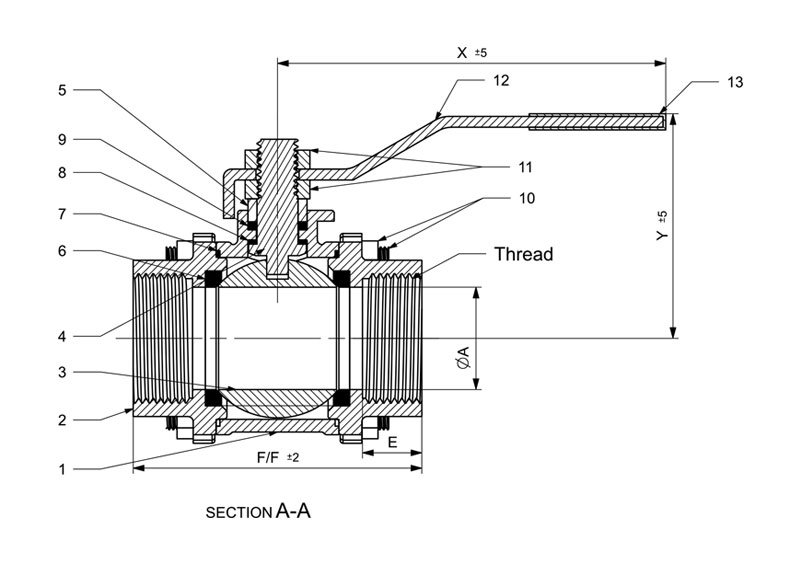

Design Features

Parameter Details
MOC WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc.
Valve Design Three Piece Construction
Size 15mm to 50mm (1/2" TO 2")
End Connection Screwed End to BSP(F) or NPT(F) (ASME B16.11)
Pressure Class 150#
Operation Manual
Design & Manufacturing Std. ISO 17292 / BS 5351
Testing & Inspection API 598 / BS 6755
Fire Safe Yes
Valve Bore Full Bore
Temp. Range -20 TO 180°C

Technical Specifications

Description Material
Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Tail Piece ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Ball (Hollow/Solid) ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Seat Ring PTFE/GFT/CFT/TFM
Body Seal PTFE/GFT/CFT/TFM/GRAFOIL
Stem Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland SS304/SS316/SS304L/SS316L/SS410
Stem SS304/SS316/SS304L/SS316L/SS410
Actuator Standard
Stud SS202/SS304/SS316/B7/MS
Nut SS202/SS304/SS316/2H/MS
Lock Nut SS202/SS304/SS316/MS
Sleeve PVC

Benefits & Application

  • Full port – higher flow rates & no pressure drops
  • Blowout-proof stem design
  • Anti static device (on request)
  • Suitable to installed on threaded pipe

Testing Parameters

Test Type Unit (Kg/cm²) Unit (PSIG)
Hydro. Shell 32 430
Hydro Seat 22 315
Air/Pneumatic 7 80
