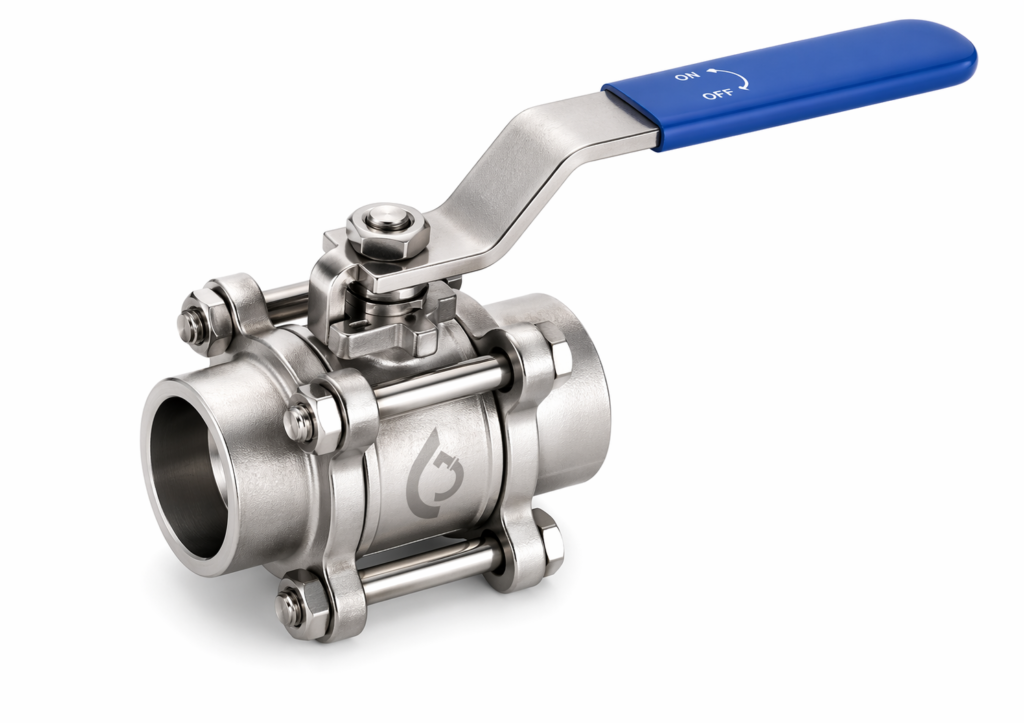

3 Piece Socket Weld End Ball Valve

The 3 Piece Socket Weld End Ball Valve is a reliable and high-performance valve designed for secure and leak-proof flow control. Its three-piece body allows easy maintenance and servicing without removing the valve from the pipeline. The socket weld ends ensure strong, permanent connections, making it ideal for high-pressure applications. Manufactured from premium materials, it offers excellent durability, corrosion resistance, and long service life in industries like oil, gas, and chemicals.

SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

The 3 Piece Socket Weld End Ball Valve is a reliable and high-performance valve designed for secure and leak-proof flow control. Its three-piece body allows easy maintenance and servicing without removing the valve from the pipeline. The socket weld ends ensure strong, permanent connections, making it ideal for high-pressure applications. Manufactured from premium materials, it offers excellent durability, corrosion resistance, and long service life in industries like oil, gas, and chemicals.

Reviews

There are no reviews yet.

Be the first to review “3 Piece Socket Weld End Ball Valve”

Your email address will not be published. Required fields are marked *

Design Features

Parameter Details
MOC WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc.
Valve Design Three Piece Construction
Size 15mm to 50mm (1/2" TO 2")
End Connection Socket Weld End (ASME B16.11)
Pressure Class 150#
Operation Manual
Design & Manufacturing Std. ISO 17292 / BS 5351
Testing & Inspection API 598 / BS 6755
Valve Bore Full Bore
Face to Face Manufacturing Standard
Temp. Range -20 TO 180°C

Technical Specifications

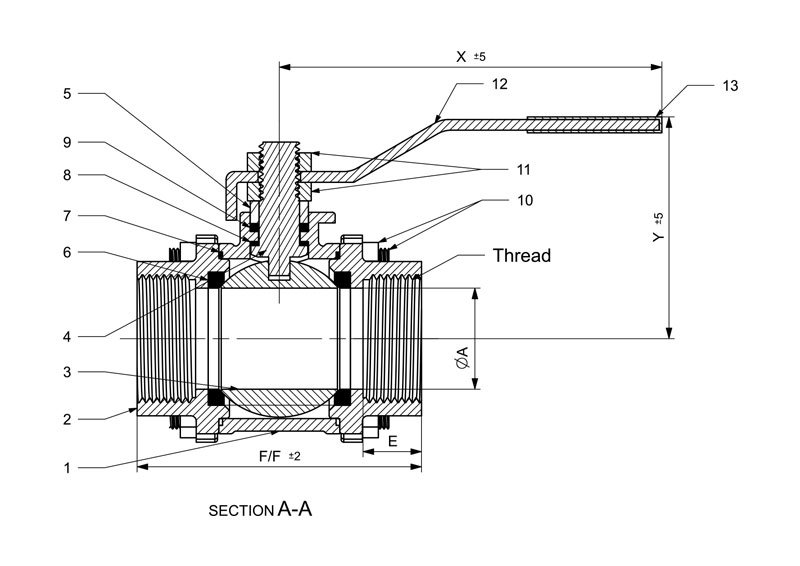

Description Material
Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Tail Piece ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Ball (Hollow/Solid) ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Seat Ring PTFE/GFT/CFT/TFM
Body Seal PTFE/GFT/CFT/TFM/GRAFOIL
Stem Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland SS304/SS316/SS304L/SS316L/SS410
Lock Nut SS202/SS304/SS316/MS
Stem SS304/SS316/SS304L/SS316L/SS410
Handle SS202/SS304/SS316/CS
Sleeve PVC
Nut SS202/SS304/SS316/2H/MS
Stud SS202/SS304/SS316/B7/MS

Benefits & Application

Testing Parameters

Test Type Unit (Kg/cm²) Unit (PSIG)
Hydro. Shell 32 430
Hydro Seat 22 315
Air/Pneumatic 7 80
