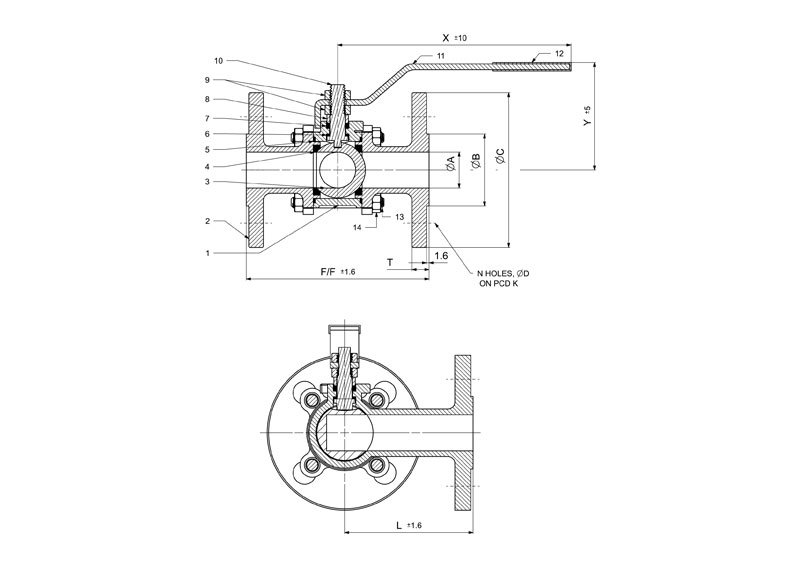

3 Way Flanged End Ball Valve

Our 3-Way Flanged End Ball Valve enables flow diversion or mixing between three pipeline directions using a single valve, which reduces the number of valves and fittings required in complex piping layouts. Available in L-port and T-port configurations, it suits applications such as flow diverting, mixing, and bypass systems in chemical processing and water treatment plants.

SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

Our 3-Way Flanged End Ball Valve enables flow diversion or mixing between three pipeline directions using a single valve, which reduces the number of valves and fittings required in complex piping layouts. Available in L-port and T-port configurations, it suits applications such as flow diverting, mixing, and bypass systems in chemical processing and water treatment plants.

Reviews

There are no reviews yet.

Be the first to review “3 Way Flanged End Ball Valve”

Your email address will not be published. Required fields are marked *

Design Features

Parameter Details
MOC WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc.
Valve Design Three Piece Construction
Size 15mm to 150mm (1/2" TO 6")
End Connection Flanged End (ASME B16.5)
Pressure Class 150#
Operation Manual, Pneumatic Actuator, Electric Actuator & Gear
Design & Manufacturing Std. BS 5351
Testing & Inspection API 598
Valve Bore Full Bore
Face to Face Manufacturing Standard
Temp. Range -20 TO 180°C

Technical Specifications

Description Material
Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Tail Piece ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Ball (Hollow/Solid) ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Seat Ring PTFE/GFT/CFT/TFM
Body Seal PTFE/GFT/CFT/TFM/GRAFOIL
Stem Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland SS304/SS316/SS304L/SS316L/SS410
Lock Nut SS202/SS304/SS316/MS
Stem SS304/SS316/SS304L/SS316L/SS410
Handle SS202/SS304/SS316/CS
Sleeve PVC
Stud SS202/SS304/SS316/B7/MS
Nut SS202/SS304/SS316/2H/MS

Benefits & Application

  • Full port – higher flow rates & no pressure drops
  • Multi-port functionality
  • Blowout-proof stem design
  • Locking provision in open/close position on request
  • Anti static device (on request)
  • 3 Port & T Port option available
  • ISO mounting pad (on request)

Testing Parameters

Test Type Unit (Kg/cm²) Unit (PSIG)
Hydro. Shell 32 430
Hydro Seat 22 315
Air/Pneumatic 7 80

3 Way Flanged End Ball Valve

Our 3-Way Flanged End Ball Valve enables flow diversion or mixing between three pipeline directions using a single valve, which reduces the number of valves and fittings required in complex piping layouts. Available in L-port and T-port configurations, it suits applications such as flow diverting, mixing, and bypass systems in chemical processing and water treatment plants.

Design Features

Parameter Details
MOC WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc.
Valve Design Three Piece Construction
Size 15mm to 150mm (1/2" TO 6")
End Connection Flanged End (ASME B16.5)
Pressure Class 150#
Operation Manual, Pneumatic Actuator, Electric Actuator & Gear
Design & Manufacturing Std. BS 5351
Testing & Inspection API 598
Valve Bore Full Bore
Face to Face Manufacturing Standard
Temp. Range -20 TO 180°C

Technical Specifications

Description Material
Body ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Tail Piece ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Ball (Hollow/Solid) ASTM A351 Gr. CF8/CF8M/CF3/CF3M
Seat Ring PTFE/GFT/CFT/TFM
Body Seal PTFE/GFT/CFT/TFM/GRAFOIL
Stem Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland Seal PTFE/GFT/CFT/TFM/GRAFOIL
Gland SS304/SS316/SS304L/SS316L/SS410
Lock Nut SS202/SS304/SS316/MS
Stem SS304/SS316/SS304L/SS316L/SS410
Handle SS202/SS304/SS316/CS
Sleeve PVC
Stud SS202/SS304/SS316/B7/MS
Nut SS202/SS304/SS316/2H/MS

Benefits & Application

  • Full port – higher flow rates & no pressure drops
  • Multi-port functionality
  • Blowout-proof stem design
  • Locking provision in open/close position on request
  • Anti static device (on request)
  • 3 Port & T Port option available
  • ISO mounting pad (on request)

Testing Parameters

Test Type Unit (Kg/cm²) Unit (PSIG)
Hydro. Shell 32 430
Hydro Seat 22 315
Air/Pneumatic 7 80
