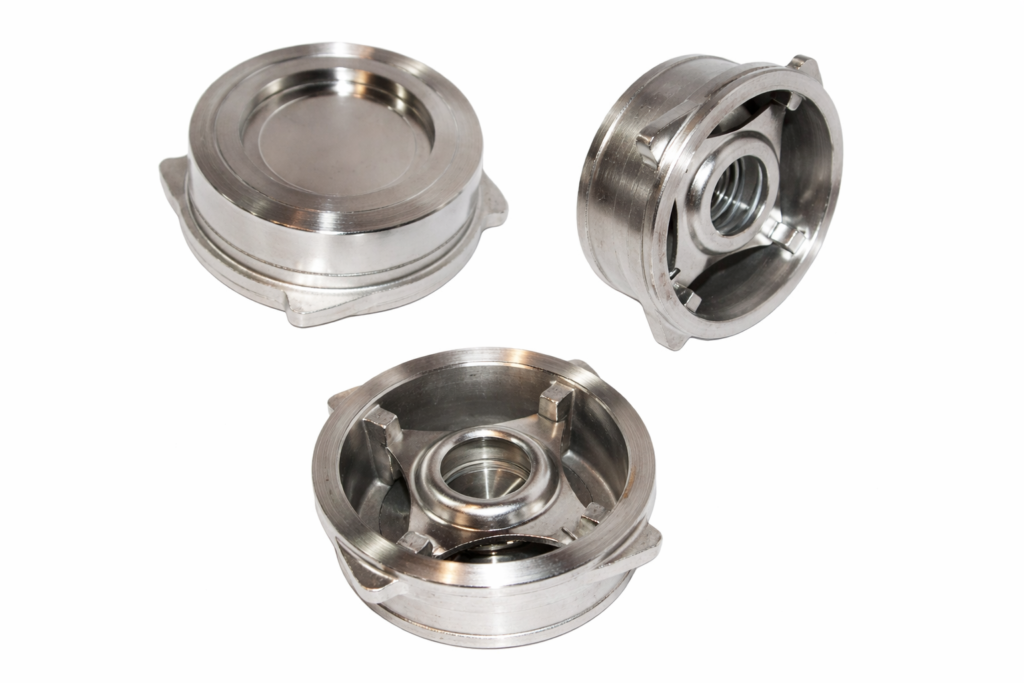

Disc Check Valve (Non Slam)

The Disc Check Valve (Non Slam) is designed to prevent backflow in pipelines while eliminating water hammer effects. Its advanced non-slam mechanism ensures smooth and silent operation, enhancing system safety and efficiency. Made from high-quality materials, it offers excellent durability, corrosion resistance, and low maintenance. Ideal for applications in water supply, oil, gas, and industrial systems

Download Catalouge
SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

The Disc Check Valve (Non Slam) is designed to prevent backflow in pipelines while eliminating water hammer effects. Its advanced non-slam mechanism ensures smooth and silent operation, enhancing system safety and efficiency. Made from high-quality materials, it offers excellent durability, corrosion resistance, and low maintenance. Ideal for applications in water supply, oil, gas, and industrial systems

Reviews

There are no reviews yet.

Be the first to review “Disc Check Valve (Non Slam)”

Your email address will not be published. Required fields are marked *

Design Features

Parameter Details
MOC WCB / CF8 / CF8M
Size 15mm to 200mm (1/2" TO 8")
End Connection Wafer
Design & Manufacturing Std. Manufacturer’s Standard
Testing & Inspection API 598
Face to Face Manufacturing Std.

Technical Specifications

Description Material
Body WCB / CF8 / CF8M
Disk WCB / CF8 / CF8M
Spring SS304 / SS316
Spring Retainer SS304 / SS316

Benefits & Application

  • One-way flow: Allows flow in one direction only, preventing backflow.
  • Disc mechanism: Uses a disc or flap to block reverse flow.
  • Low pressure drop: Minimal resistance to flow when open.
  • Quick closure: Rapid response to reverse flow to prevent surges.

Testing Parameters

Disc Check Valve (Non Slam)

The Disc Check Valve (Non Slam) is designed to prevent backflow in pipelines while eliminating water hammer effects. Its advanced non-slam mechanism ensures smooth and silent operation, enhancing system safety and efficiency. Made from high-quality materials, it offers excellent durability, corrosion resistance, and low maintenance. Ideal for applications in water supply, oil, gas, and industrial systems

Design Features

Parameter Details
MOC WCB / CF8 / CF8M
Size 15mm to 200mm (1/2" TO 8")
End Connection Wafer
Design & Manufacturing Std. Manufacturer’s Standard
Testing & Inspection API 598
Face to Face Manufacturing Std.

Technical Specifications

Description Material
Body WCB / CF8 / CF8M
Disk WCB / CF8 / CF8M
Spring SS304 / SS316
Spring Retainer SS304 / SS316

Benefits & Application

  • One-way flow: Allows flow in one direction only, preventing backflow.
  • Disc mechanism: Uses a disc or flap to block reverse flow.
  • Low pressure drop: Minimal resistance to flow when open.
  • Quick closure: Rapid response to reverse flow to prevent surges.

Testing Parameters
