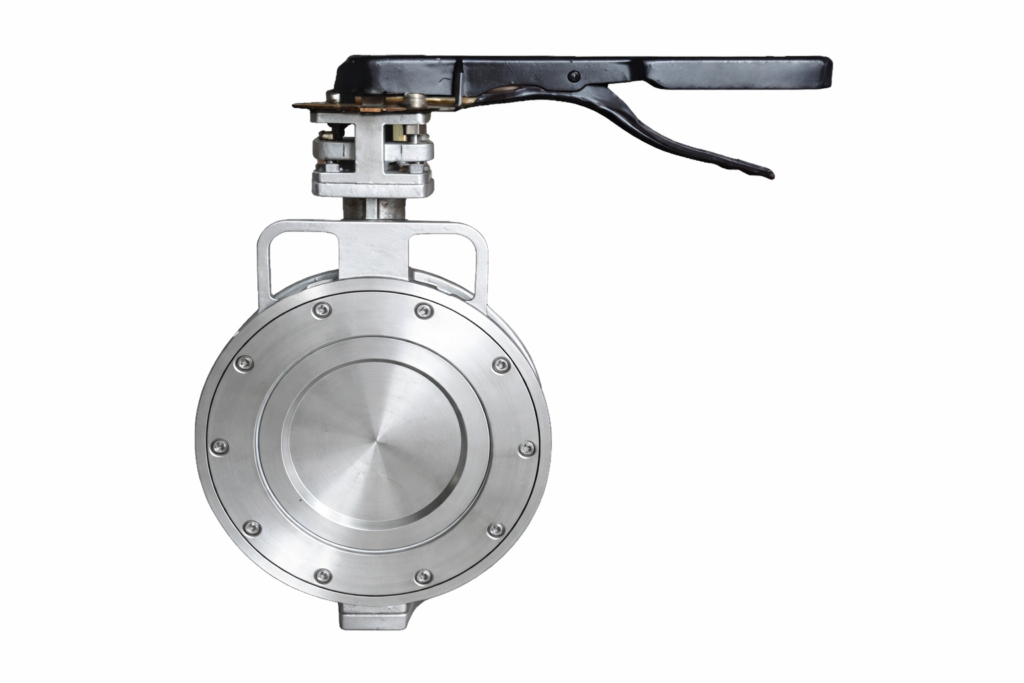

High Performance Double Offset Butterfly Valve – Lever Operated

The High Performance Double Offset Butterfly Valve – Lever Operated is designed for superior sealing and efficient flow control in demanding industrial applications. Its double offset design minimizes friction, ensuring longer service life and tight shut-off performance. Operated by a lever, it allows quick and easy manual control. Made from high-quality materials, it offers excellent durability, corrosion resistance, and reliable performance in industries such as oil, gas, chemical, and water treatment.

SOCIAL SHARE:
Facebook
Twitter
LinkedIn

Description

The High Performance Double Offset Butterfly Valve – Lever Operated is designed for superior sealing and efficient flow control in demanding industrial applications. Its double offset design minimizes friction, ensuring longer service life and tight shut-off performance. Operated by a lever, it allows quick and easy manual control. Made from high-quality materials, it offers excellent durability, corrosion resistance, and reliable performance in industries such as oil, gas, chemical, and water treatment.

Reviews

There are no reviews yet.

Be the first to review “High Performance Double Offset Butterfly Valve – Lever Operated”

Your email address will not be published. Required fields are marked *

Design Features

Parameter Details
MOC WCB/CF8/CF8M (CF3/CF3M And high nickel Alloys on Request)
Valve Design Eccentric (Double Offset) Design
Size 40mm to 150mm (1 1/2" TO 6")
End Connection Wafer End
Pressure Class PN10 / PN16
Operation Manual
Design & Manufacturing Std. BS EN 593 / ISO 5211
Testing & Inspection API 598
Face to Face BS EN 558

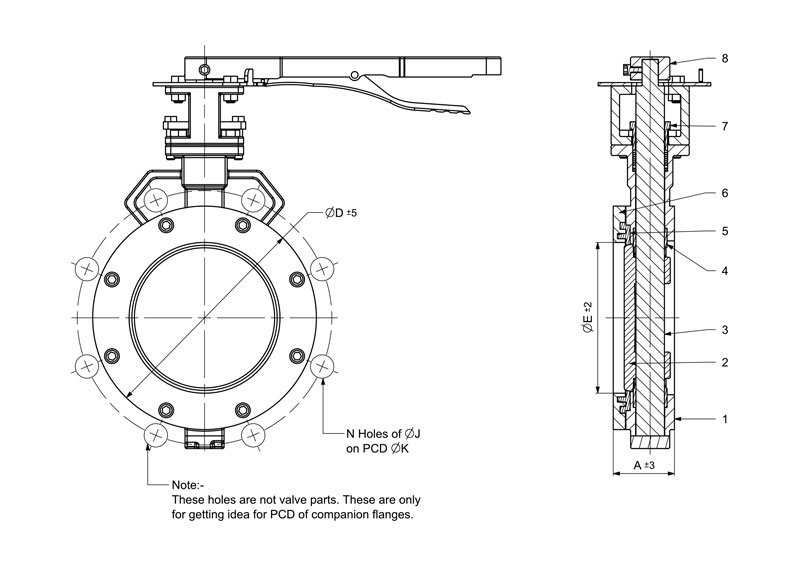

Technical Specifications

Description Material
Body WCB/CF8/CF8M (CF3-CF3M On Request)
Disc WCB/CF8/CF8M (CF3-CF3M On Request)
Stem SS304/SS316/SS410
Stem Bush SS304/SS316/SS410
Seat Ring PTFE/GFT
Retainer MS/CF8/CF8M
Gland CF8/CF8M
Handle MS with Powder Coating

Benefits & Application

  • Solid heavy-duty valve body with seat retainer construction as per API 609
  • Optimized disc geometry ensures low flow resistance and high Cv values
  • Heavy-duty pins connect valve shaft to disc, preventing motion loss
  • Replaceable seat design provides bubble-tight shut-off and long life
  • Low friction PTFE bearings reduce torque and actuator size
  • Multiple seat options: PTFE, EPDM, Viton, metal seats for various fluids
  • Suitable for critical applications like high temperature, gas, vacuum, refinery, chemical & hydrocarbon services

Testing Parameters

Test Type Unit (Bar) Unit (PSIG)
Hydro. Shell 15 220
Hydro Seat 11 220
Air/Pneumatic 7 80
