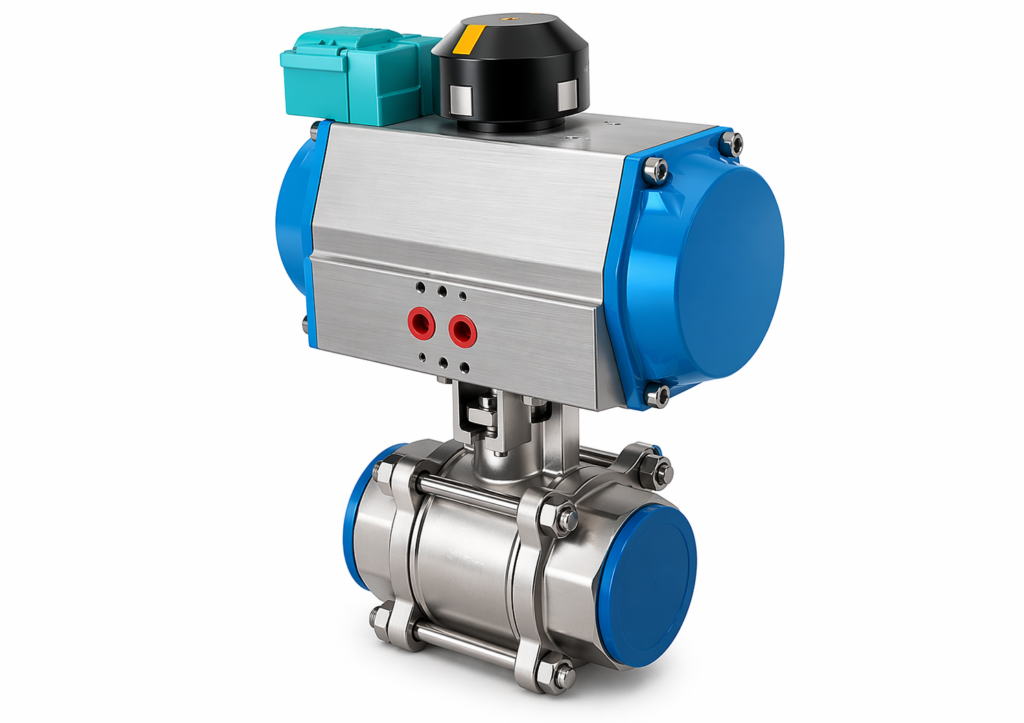

This Pneumatic Operated 3-Piece Screwed End Ball Valve pairs a maintenance-friendly three-piece body with a pneumatic actuator for automated on/off or modulating control. It is well suited for remote-controlled process lines where manual operation is impractical, such as batch processing and automated utility systems. The screwed end connection simplifies installation for small to medium pipeline sizes.
This Pneumatic Operated 3-Piece Screwed End Ball Valve pairs a maintenance-friendly three-piece body with a pneumatic actuator for automated on/off or modulating control. It is well suited for remote-controlled process lines where manual operation is impractical, such as batch processing and automated utility systems. The screwed end connection simplifies installation for small to medium pipeline sizes.

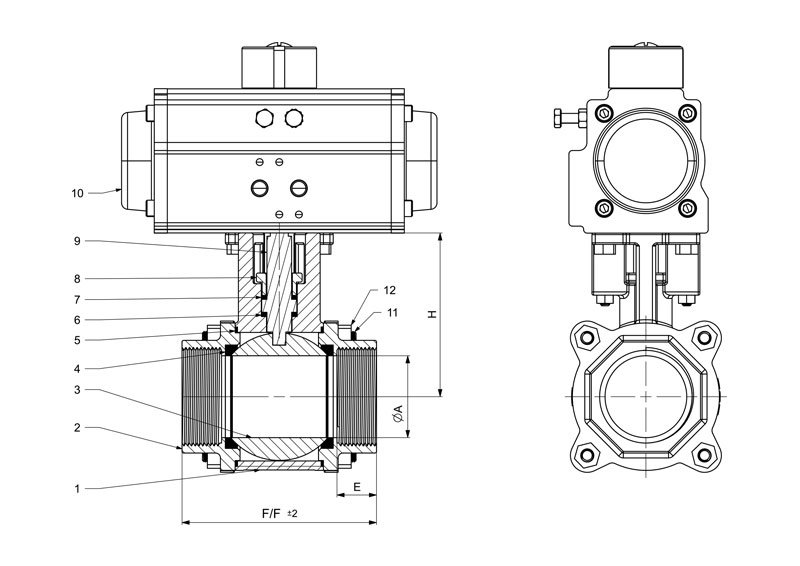

| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Three Piece Construction |
| Size | 15mm to 65mm (1/2" TO 2-1/2") |
| End Connection | Screwed End to BSP(F) or NPT(F) (ASME B16.11) / Socket Weld |
| Pressure Class | 150# |
| Operation | Single Acting Or Double Acting Actuator |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D / ISO 5211 |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | Yes |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Actuator | Standard |
| Stud | SS202/SS304/SS316/B7/MS |
| Nut | SS202/SS304/SS316/2H/MS |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Three Piece Construction |
| Size | 15mm to 65mm (1/2" TO 2-1/2") |
| End Connection | Screwed End to BSP(F) or NPT(F) (ASME B16.11) / Socket Weld |
| Pressure Class | 150# |
| Operation | Single Acting Or Double Acting Actuator |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D / ISO 5211 |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | Yes |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |
| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Actuator | Standard |
| Stud | SS202/SS304/SS316/B7/MS |
| Nut | SS202/SS304/SS316/2H/MS |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
