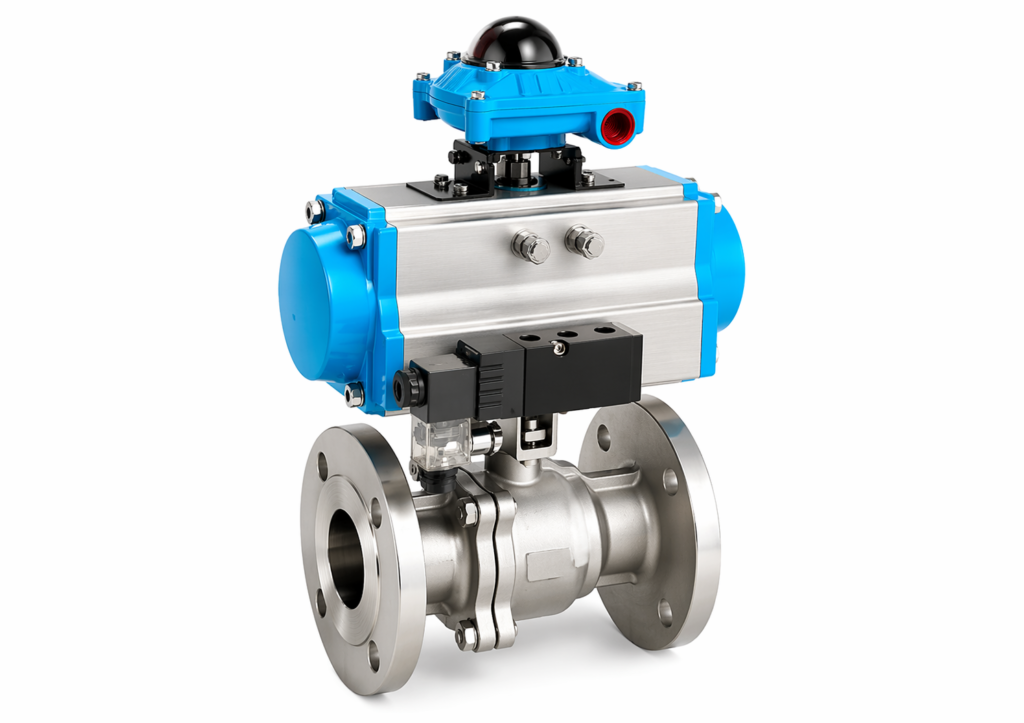

The Pneumatic Operated Flanged End Ball Valve is an advanced flow control solution designed for automated industrial applications. Equipped with a pneumatic actuator, it ensures fast and precise operation with minimal manual effort. Built from high-quality materials, it offers excellent durability, corrosion resistance, and leak-proof performance. The flanged end connection provides secure installation, making it ideal for use in water, oil, gas, and chemical industries.
The Pneumatic Operated Flanged End Ball Valve is an advanced flow control solution designed for automated industrial applications. Equipped with a pneumatic actuator, it ensures fast and precise operation with minimal manual effort. Built from high-quality materials, it offers excellent durability, corrosion resistance, and leak-proof performance. The flanged end connection provides secure installation, making it ideal for use in water, oil, gas, and chemical industries.
| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Two Piece Construction / Three Piece Construction |
| Size | 15mm to 200mm (1/2" TO 8") |
| End Connection | Flanged End (ASME B16.5) |
| Pressure Class | 150# |
| Operation | Single Acting Or Double Acting Actuator (Rack & Pinion Type) |
| Design & Manufacturing Std. | ISO 17292 / BS 5351 / API 6D / ISO 5211 |
| Testing & Inspection | API 598 / BS 6755 |
| Fire Safe | Yes |
| Valve Bore | Full Bore |
| Face to Face | ASME B16.10 |
| Temp. Range | -20 TO 180°C |

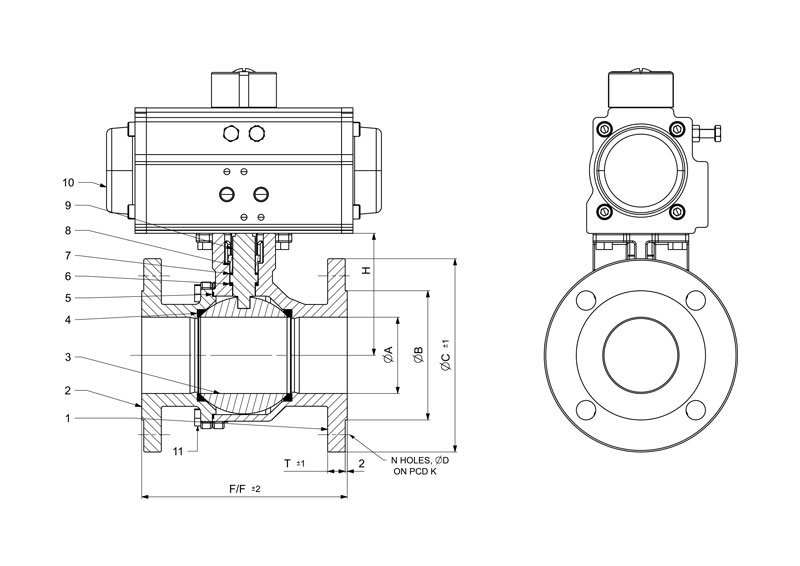

| No | Description | Material |
|---|---|---|
| 1 | Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 2 | Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 3 | Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| 4 | Seat Ring | PTFE/GFT/CFT/TFM |
| 5 | Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 6 | Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 7 | Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| 8 | Gland | SS304/SS316/SS304L/SS316L/SS410 |
| 9 | Stem | SS304/SS316/SS304L/SS316L/SS410 |
| 10 | Actuator | Standard |
| 11 | Bolt | SS 202/SS 304/SS 316/B7/MS |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro. Shell | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
