The Single Piece Screwed End Ball Valve is a compact and cost-effective solution for reliable flow control. Designed with a one-piece body, it offers strong construction, minimal leakage points, and long service life. The screwed end connections ensure easy installation and tight sealing, making it suitable for applications in water, oil, gas, and general industrial systems.
The Single Piece Screwed End Ball Valve is a compact and cost-effective solution for reliable flow control. Designed with a one-piece body, it offers strong construction, minimal leakage points, and long service life. The screwed end connections ensure easy installation and tight sealing, making it suitable for applications in water, oil, gas, and general industrial systems.
| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Single Piece Construction |
| Size | 8mm to 100mm (1/4" TO 4") |
| End Connection | Screwed End to BSP(F) or NPT(F) (ASME B16.11) |
| Pressure Class | 150# |
| Operation | Manual |
| Design & Manufacturing Std. | BS 5351 |
| Testing & Inspection | API 598 / BS 6755 |
| Valve Bore | Full Bore |
| Face to Face | Manufacturing Standard |
| Temp. Range | -20 TO 180°C |

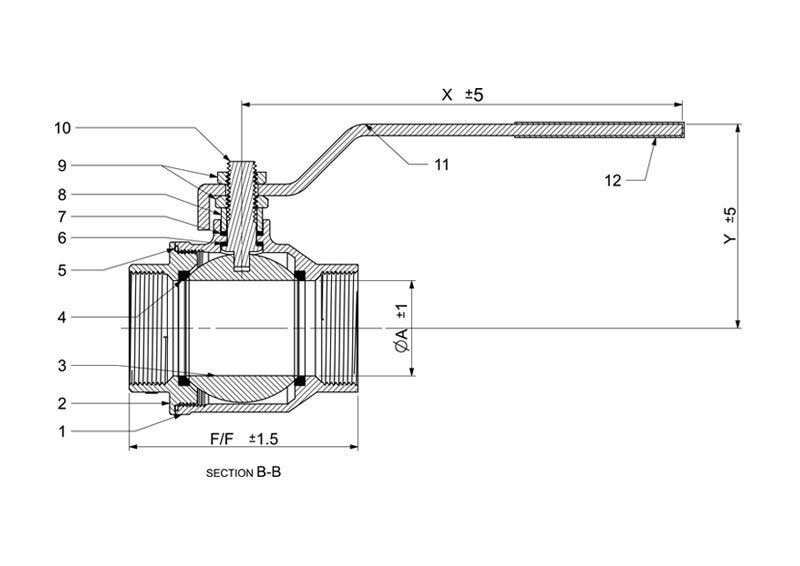

| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Lock Nut | SS202/SS304/SS316/MS |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Handle | SS202/SS304/SS316/CS |
| Sleeve | PVC |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro Body | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
| Parameter | Details |
|---|---|
| MOC | WCB/CF8/CF8M/CF3/CF3M And high nickel Alloys, Etc. |
| Valve Design | Single Piece Construction |
| Size | 8mm to 100mm (1/4" TO 4") |
| End Connection | Screwed End to BSP(F) or NPT(F) (ASME B16.11) |
| Pressure Class | 150# |
| Operation | Manual |
| Design & Manufacturing Std. | BS 5351 |
| Testing & Inspection | API 598 / BS 6755 |
| Valve Bore | Full Bore |
| Face to Face | Manufacturing Standard |
| Temp. Range | -20 TO 180°C |
| Description | Material |
|---|---|
| Body | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Tail Piece | ASTM A216 Gr. WCB / ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Ball (Hollow/Solid) | ASTM A351 Gr. CF8/CF8M/CF3/CF3M |
| Seat Ring | PTFE/GFT/CFT/TFM |
| Body Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Stem Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland Seal | PTFE/GFT/CFT/TFM/GRAFOIL |
| Gland | SS304/SS316/SS304L/SS316L/SS410 |
| Lock Nut | SS202/SS304/SS316/MS |
| Stem | SS304/SS316/SS304L/SS316L/SS410 |
| Handle | SS202/SS304/SS316/CS |
| Sleeve | PVC |
| Test Type | Unit (Kg/cm²) | Unit (PSIG) |
|---|---|---|
| Hydro Body | 32 | 430 |
| Hydro Seat | 22 | 315 |
| Air/Pneumatic | 7 | 80 |
