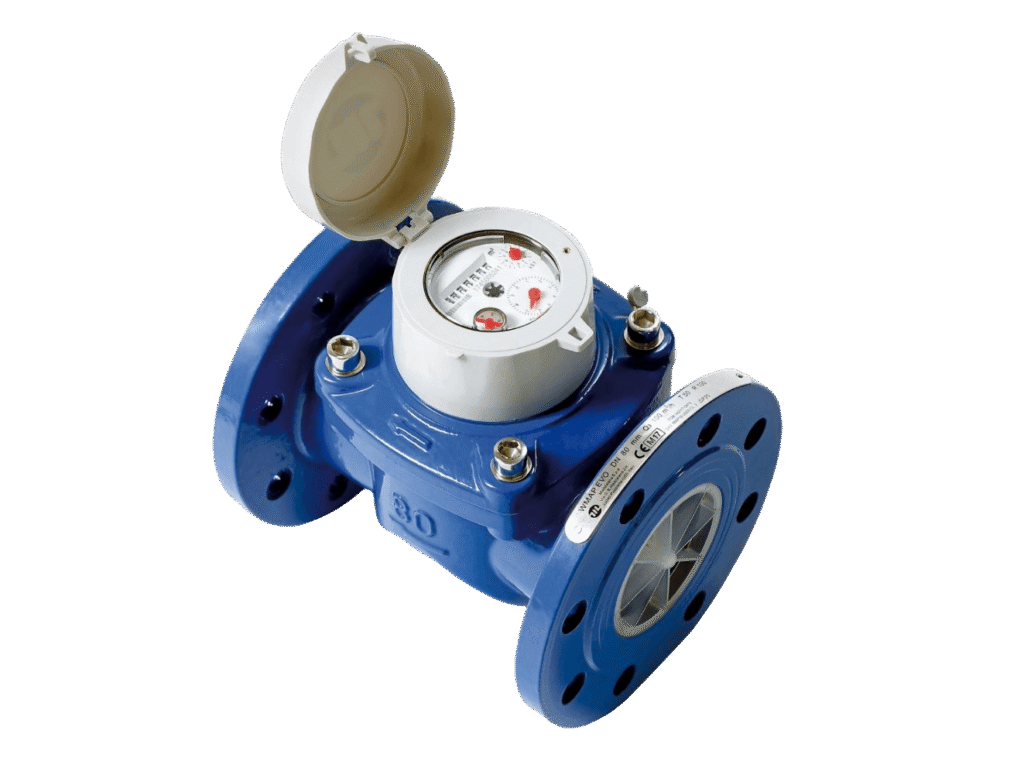

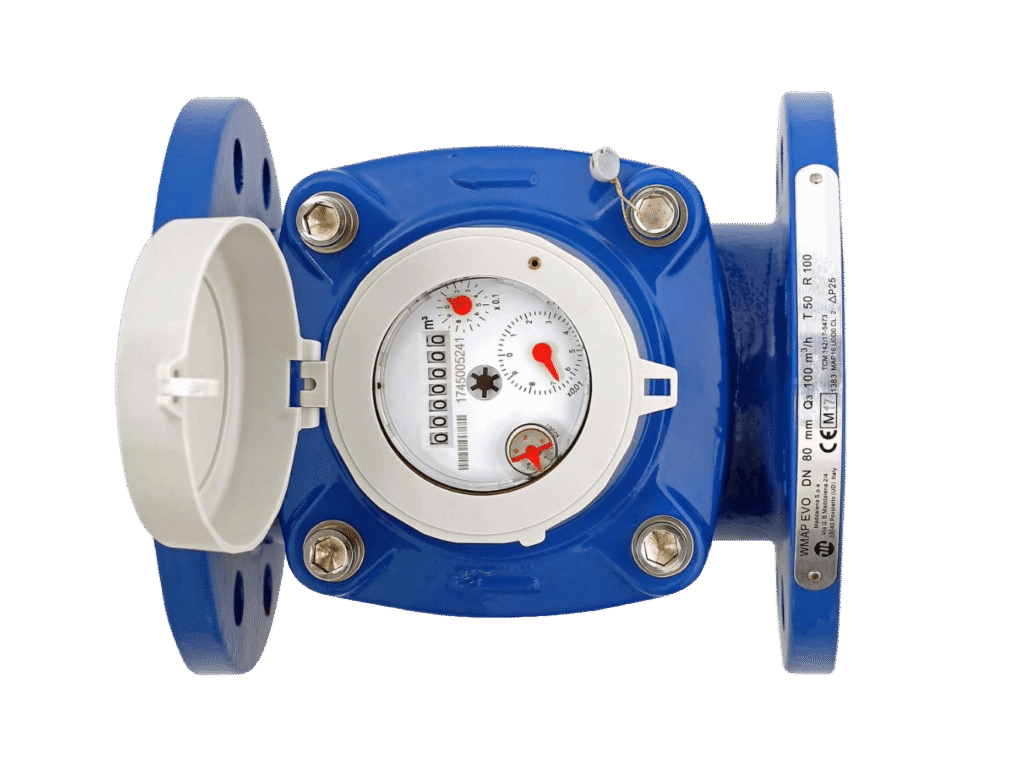

WMAP Evo represents an excellent solution for large volume metering in the utility, industrial and commercial sectors. It provides good metrological performance and wide measuring range, while ensuring perfect readability over time thanks to its IP68 copper/glass register. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.
WMAP Evo represents an excellent solution for large volume metering in the utility, industrial and commercial sectors. It provides good metrological performance and wide measuring range, while ensuring perfect readability over time thanks to its IP68 copper/glass register. Robust, long lasting and suitable for the most challenging environments, it is compatible with all types of water. It can be equipped with the latest remote data transmission technologies.
| Interchangeable mechanism axial Woltmann meter for cold water |
| Ideal for large volumes for utilities and industrial use |
| MID-certified: R max 250 |
| DN: 50÷200 |
| Health certifications available for a number of countries |
| High protection against external magnetic fields |
| Mineral glass lens |
| Sealed register (IP68 copper/glass) to prevent condensation |
| The register can be rotated |
| Can be provided fitted with wired or radio communication module |
| Pre-equipped for reed switch (DN 50÷100mm 1P=100L / DN 125÷200mm 1P=1000L) or static pulse emitter (DN 50÷100mm 1P=10L / DN 125÷200mm 1P=100L) |
| Interchangeable mechanism axial Woltmann meter for cold water |
| Ideal for large volumes for utilities and industrial use |
| MID-certified: R max 250 |
| DN: 50÷200 |
| Health certifications available for a number of countries |
| High protection against external magnetic fields |
| Mineral glass lens |
| Sealed register (IP68 copper/glass) to prevent condensation |
| The register can be rotated |
| Can be provided fitted with wired or radio communication module |
| Pre-equipped for reed switch (DN 50÷100mm 1P=100L / DN 125÷200mm 1P=1000L) or static pulse emitter (DN 50÷100mm 1P=10L / DN 125÷200mm 1P=100L) |
